Overview

All-in-one Docker for Orbbec depth cameras: includes drivers, ROS 2 samples, RViz2 setup—ideal for fast testing and development on any Linux host.

Orbbec Gemini 3D Camera ROS2 Demo

About Advantech Container Catalog

Advantech Container Catalog is a comprehensive collection of ready-to-use, containerized software packages designed to accelerate the development and deployment of Edge AI applications. By offering pre-integrated solutions optimized for embedded hardware, it simplifies the challenges often faced with software and hardware compatibility, especially in GPU/NPU-accelerated environments.

Key benefits of the Container Catalog include:

Feature / Benefit Description
Accelerated Edge AI Development Ready-to-use containerized solutions for fast prototyping and deployment
Hardware Compatibility Solved Eliminates embedded hardware and AI software package incompatibility
GPU/NPU Access Ready Supports passthrough for efficient hardware acceleration
Model Conversion & Optimization Built-in AI model quantization and format conversion support
Optimized for CV & LLM Applications Pre-optimized containers for computer vision and large language models
Open Ecosystem 3rd-party partners can integrate new apps to expand the platform

Container Overview

This container, Orbbec Gemini 3D Camera ROS2 Demo, provides a complete demonstration environment for Orbbec depth cameras using ROS 2. It includes:

  • Orbbec camera drivers

  • Functional sample packages

  • Pre-configured RViz2 visualization

  • Udev rules and system setup scripts for camera detection

Designed for quick testing, development, and evaluation of Orbbec cameras on any Linux host with Docker installed.

Container Demo

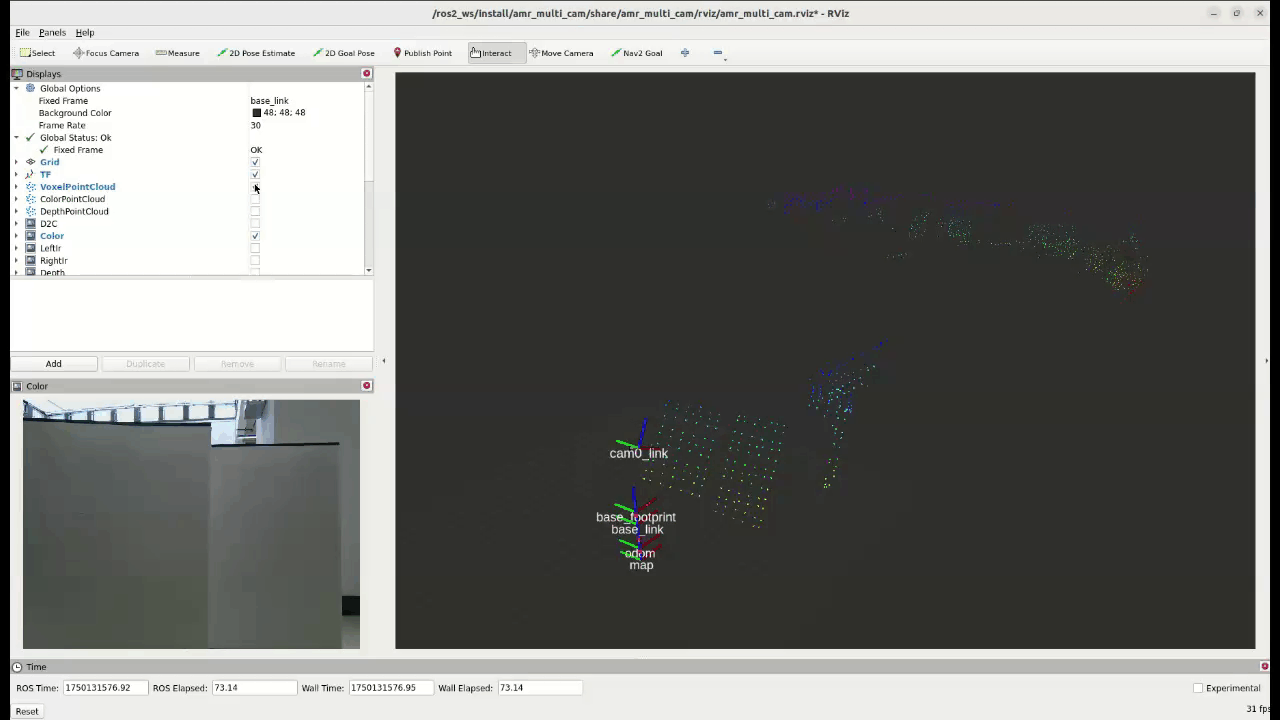

Point Cloud Voxelization

Voxel filtering reduces point cloud density, improving processing speed and system performance.

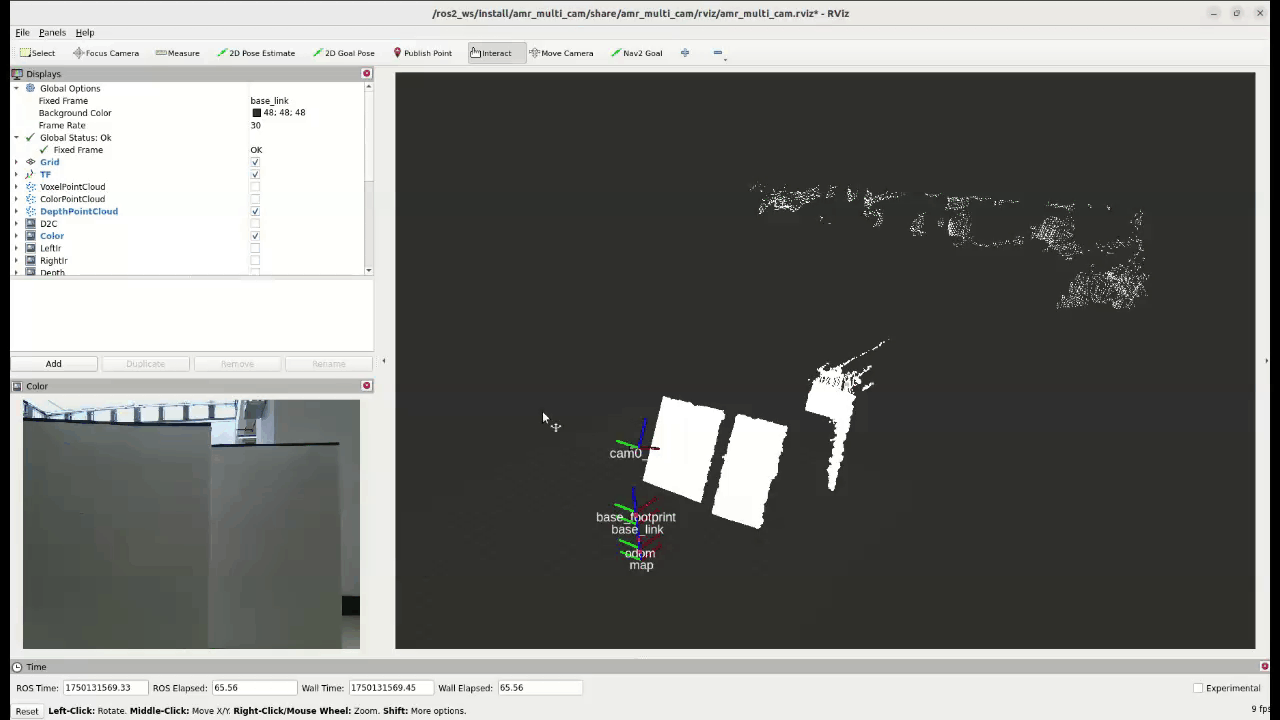

DepthPointCloud

Converts depth information into 3D point cloud data.

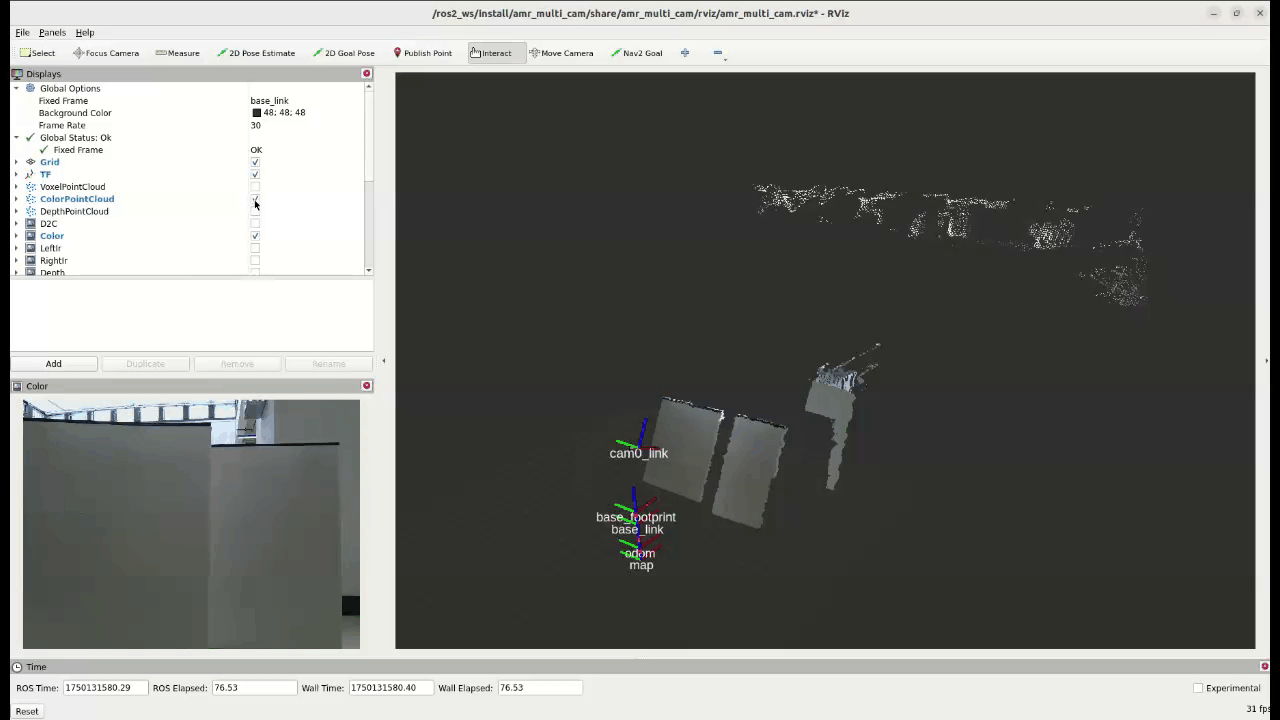

Colored Point Cloud

Generates colored point clouds by aligning RGB images with depth maps.

Local Costmap

The local costmap reflects real-time perception of the robot's immediate surroundings.

Key Features

  • Pre-installed ROS 2 (Humble)

  • Built-in OrbbecSDK ROS 2 wrapper

  • Supports RViz2 visualization

  • Includes RGB/Depth/IR/D2C/PointCloud demos

  • Launch-ready functional AMR-style example

  • Works out of the box with supported USB-connected Orbbec devices

Host Device Prerequisites

Platform Compatibility
x86_64 Tested

Prerequisite Software on the Host OS

Before running the container, ensure that your host system has the following software installed:

  • Docker Engine
    Version 20.10 or newer is recommended for best compatibility.
    Installation guide: https://docs.docker.com/engine/install/

  • Docker Compose
    Required for managing multi-container setups.
    Installation guide: https://docs.docker.com/compose/install/

  • NVIDIA Container Toolkit
    Required to enable GPU access inside containers. This toolkit provides the necessary runtime for Docker to interface with the NVIDIA driver and GPU resources.
    Installation guide (official): https://docs.nvidia.com/datacenter/cloud-native/container-toolkit/install-guide.html

    Note for users in mainland China:
    If you experience slow or blocked access to nvidia.github.io, consider using a domestic mirror (e.g., USTC) to install the toolkit.

Container Environment Overview

Software Components Inside the Container Image

  • Base Image: ubuntu:22.04

  • ROS 2: Humble Hawksbill (also supports Foxy/Jazzy if rebuilt)

  • OrbbecSDK_ROS2: ROS 2 wrapper for Orbbec camera SDK

  • amr_multi_cam: Sample functional package for multi-camera use case

  • RViz2: Pre-installed for visualization

  • colcon, argcomplete, image_transport_plugins, and others

Container Quick Start Guide

For container quick start, including docker-compose file, and more, please refer to Advantech EdgeSync Container Repository - Orbbec ROS 2 Demonstration Container

About Orbbec

Dedicated to All things for 3D Vision since 2013. From sensors to silicon, algorithms to AI, design to production, supply-chain to manufacturing.

More info regarding Orbbec, visit Orbbec Official Website.
