LLM Langchain AI Agent on NVIDIA Jetson™

About Advantech Container Catalog

Advantech Container Catalog is a comprehensive collection of ready-to-use, containerized software packages designed to accelerate the development and deployment of Edge AI applications. By offering pre-integrated solutions optimized for embedded hardware, it simplifies the challenges often faced with software and hardware compatibility, especially in GPU/NPU-accelerated environments.

Key benefits of the Container Catalog include:

Feature / Benefit	Description
Accelerated Edge AI Development	Ready-to-use containerized solutions for fast prototyping and deployment
Hardware Compatibility Solved	Eliminates embedded hardware and AI software package incompatibility
GPU/NPU Access Ready	Supports passthrough for efficient hardware acceleration
Model Conversion & Optimization	Built-in AI model quantization and format conversion support
Optimized for CV & LLM Applications	Pre-optimized containers for computer vision and large language models
Open Ecosystem	3rd-party developers can integrate new apps to expand the platform

Container Overview

LLM Langchain AI Agent on NVIDIA Jetson™ provides a modular, middleware-powered AI chat solution built for NVIDIA Jetson™ Systems. This stack uses Ollama with LLAMA 3.2 1b Model to serve LLMs, a FastAPI-based LangChain service for middleware logic, and OpenWebUI as the user interface.

This architecture enables tool-augmented reasoning, multi-turn memory, and custom LLM workflows using LangChain Agents.

User Benefits:

Plug-and-play LLM Container on Edge: supported by variety of Advantech AI-powered hardwares & Containerized environment with GPU passthrough optimized for LLM /Agentic AI applications.
Reduce Model Compilation Effort: Standarized model conversion and quantization workflow for users on NVIDIA Jetson™ platforms.
Flexible Harware Options: Select AI-powered hardware from Advantech’s verified list to best match your Edge AI application requirements—fully supported and optimized for this container.

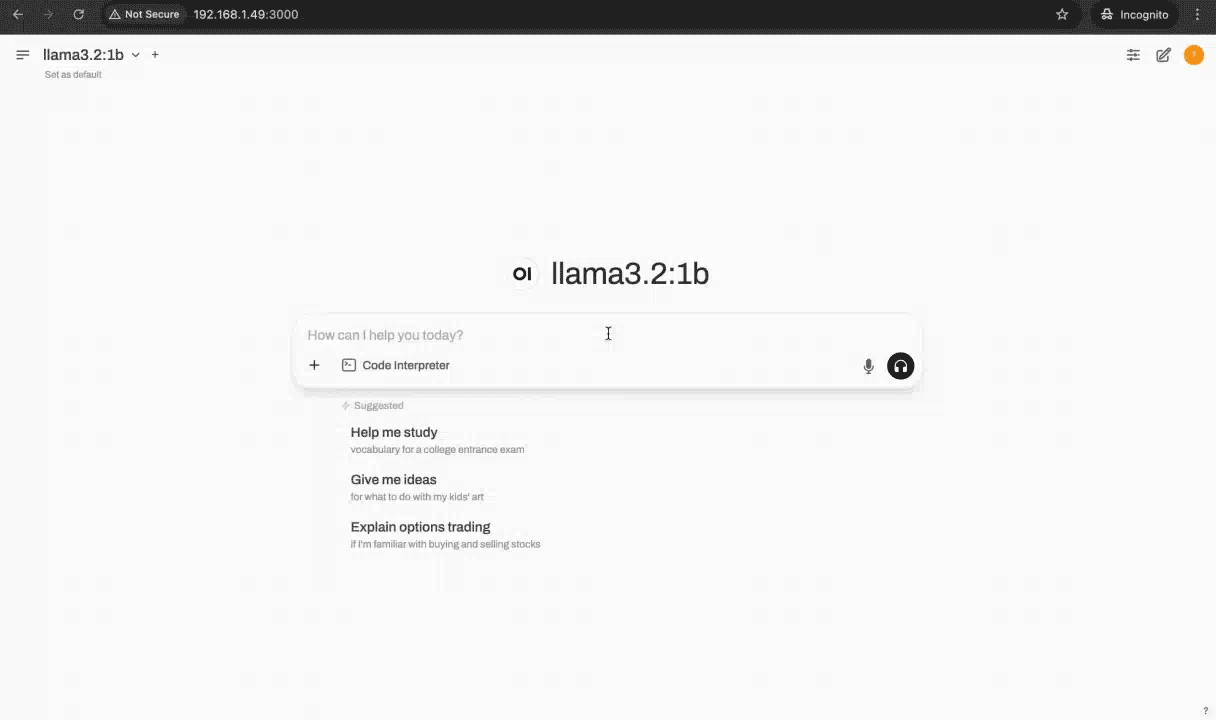

Container Demo

Key Features

Feature	Content
LLAMA 3.2 1b Inference	Efficient on-device LLM deployment via Ollama, optimized for edge environments with minimal memory usage and high-performance inference
Integrated OpenWebUI	Clean, user-friendly frontend for interacting with LLMs via chat interface
Custom Model Creation	Build or fine-tune your own variants with ollama create
REST API Access	Interact with models via a simple local HTTP API
Flexible Parameters	Tune inference with temperature, top_k, repeat_penalty, etc
Modelfile Customization	Define model behavior and parameters using a Docker-like file
Prompt Templates	Automatically format conversations using common structures like chatml or llama
LangChain Agent Integration	Enables tool-augmented reasoning, structured prompt handling, and advanced control flow logic for enhanced interactions
LangChain Memory Support	Multi-turn chat via ConversationBufferMemory for contextual understanding
FastAPI Middleware	Lightweight interface between OpenWebUI and LangChain
Complete AI Framework Stack	PyTorch, TensorFlow, ONNX Runtime
Industrial Vision Support	Accelerated OpenCVpipelines
Edge AI Capabilities	Support for computer vision, LLMs, and time-series analysis
Performance Optimized	Tuned specifically for Advantech EPC-R7300 and more devices

Host Device Prerequisites

Item	Specification
Compatible Hardware	Advantech devices powered by NVIDIA Jetson™ - refer to Compatible hardware
NVIDIA Jetson™ Version	5. x
Host OS	Ubuntu 20.04
Required Software packages	*refer to below
Software Installation	NVIDIA Jetson™ Software Package Installation

Hardware Specifications

Component	Specification
Target Hardware	NVIDIA Jetson™
GPU	NVIDIA Ampere architecture with 1024 CUDA® cores
DLA Cores	1 (Deep Learning Accelerator)
Memory	4/8/16 GB shared GPU/CPU memory
NVIDIA Jetson™ Version	5.x

Container Environment Overview

Architecture

User → OpenWebUI → FastAPI (LangChain Agent) → Ollama Inference

Software Components on Container Image

Component	Version	Description
NVIDIA CUDA® Toolkit	11.4.315	GPU computing platform
cuDNN	8.6.0	Deep Neural Network library
TensorRT™	8.5.2.2	Inference optimizer and runtime
PyTorch	2.0.0+nv23.02	Deep learning framework
TensorFlow	2.12.0+nv23.05	Machine learning framework
ONNX Runtime	1.16.3	Cross-platform inference engine
OpenCV	4.5.0	Computer vision library with NVIDIA CUDA® Toolkit
GStreamer	1.16.2	Multimedia framework

Model Information

Item	Description
Model source	Ollama Model (llama3.2:1b)
Model architecture	llama
Model quantization	Q8_0
Ollama command	ollama pull llama3.2:1b
Number of Parameters	~1.24 B
Model size	~1.3 GB
Default context size (governed by Ollama in this image)	2048

Language Model Recommendation & Performace Reference

Model Family	Versions	Memory Requirements	Performance Notes
DeepSeek R1	1.5B	~1 GB	~15-17 tokens/sec in Q4_K_M
Llama 3.2	1B	~1 GB	~17-20 tokens/sec in Q8_0
DeepSeek Coder	Mini (1.3B), Light (1.5B)	2-3 GB
TinyLlama	1.1B	2 GB
Phi	Phi-1.5 (1.3B), Phi-2 (2.7B)	1.5-3 GB
Llama 2	7B (Quantized to 4-bit)	3-4 GB
Mistral	7B (Quantized to 4-bit)	3-4 GB

*The performance benchmarking is run on NVIDIA® Jetson Orin™ NX, NVIDIA Jetson™ 5.1.

Container Quick Start Guide

For container quick start, including docker-compose file, and more, please refer to Advantech EdgeSync Container Repository

Ollama Integration

This container leverages Ollama as the local inference engine to serve LLMs efficiently on NVIDIA Jetson™ systems. Ollama provides a lightweight and container-friendly API layer for running language models like LLAMA3.2-1b without requiring cloud-based services.

Key Highlights:

Local model inference via Ollama API (http://localhost:11434/v1)
Supports streaming output for chat-based UIs like OpenWebUI
Works with quantized .gguf models optimized for edge hardware
